PXXXVDX

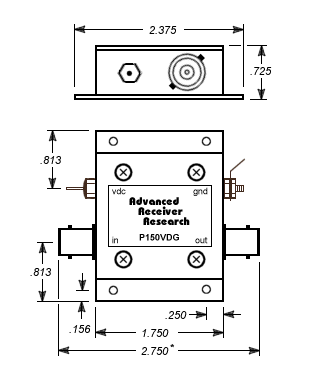

Dimensional Drawing

PXXXVDX drawing

Notes: Dimensions are in inches. Shown with BNC connectors. * dimension for optional connector types: N - 3.000, SMA - 2.250, TNC - 2.750, RCA - 2.570, F - 2.670.
