PD2 & PD4

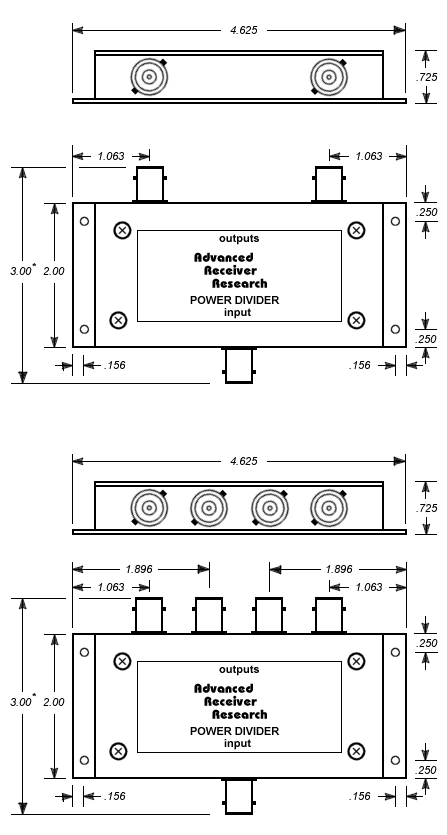

Dimensional Drawing

PD2 and PD4 drawing

Notes: Dimensions are in inches. Shown with BNC connectors. * dimension for optional connector types: N - 3.125, SMA - 2.750, TNC - 3.000, RCA - 2.820, F - 2.920.
